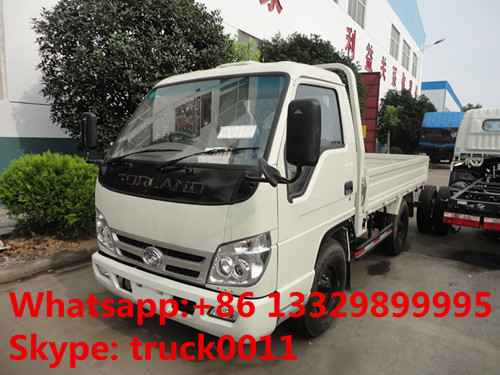

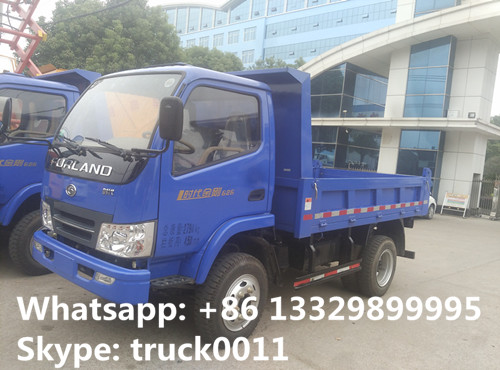

Foton forland 4*2 RHD 3ton-4ton mini dump truck, factory direct sale best price forland 3tons mini dump truck

BJ3032D3PEA

Engine

Engine model and emission

YN4102QB

Engine type

Four-cylinder,four-stroke,water-cooling,in-line

Rated power of engine (kw/rpm)

70/3100

Maximum torque (N.m/rpm)

245/1800-2100

Engine displacement (L)

3.76

Gearbox

Gearbox type

5T26

Rear axle

Rear axle type

Dead axle full float axle

Rear axle load (T)

3T

Rear axle speed ratio

6.142

Dumping type/oil cylinder size

Single amplification mechanism/ HG-E110×440

Cabin type/width (mm)

Right side driving, flat head,single-row/1695

Drive form

4×2

Tire type/number

7.50R16/6+1

Brake

Service brake type

Drum type, hydraulic braking

Parking brake type

Central drum type

Steering device

Power steering

Weight parameter

Curb weight (Kg)

2930

Rated load capacity (Kg)

3000

Performance parameter

Maximum speed (no load)(km/h)

72

Maximumgrade-ability(%)

≥25%

Minimum ground clearance (mm)

≥200

Maximum lift degree (°)

52.8°

Dimension parameters

Overall dimensions (LxWxH)mm

4870×1910×2390

Internal van dimensions (LxWxH)mm

3000×1800×500

Wheelbase (mm)

2600

Front/rear wheel track (mm)

1482.5/1480

Front/rear suspension (mm)

1100/1160

Rated voltage (V)

24

Capacity of the fuel tank (L)

70

Standard configuration

Spare tire, electronically controlled flameout, adjustable steering wheel,air-conditioner
