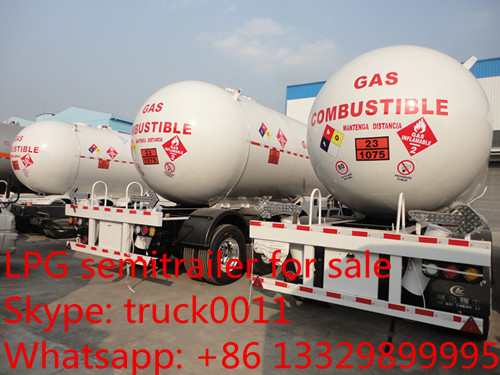

ASME 2 axle LPG tank trailer 40500L for sale, factory direct sale 2 axles BPW propane gas tank semitrailer for sale
LPG tank semi traileris also calledLPG tank Semi -trailer, LPG tank semi trailer transport trailer,iswidely used in transporting kinds of LPG. It has large loading quality , safe, stable,etc features.
Production notes:
1, certificate ISO9001,3C, ASME standard
2 High quality, low price.
3 Loading LPG tanker volume40.5m3 to 58.5m3
4 Fuwa, L1 or BPW 2 axles or 3 axles.
5,Very Safety Control System: float liquid indicator, built-in safety valve, emergency cut-off valve, ball valve and etc.
More information, please feel free to send email to truck0011@163.com or talk to Anita directly by whatsapp/wechat: +86 13329899995.
Technical Parameterof3 axles LPG tank semi trailer:
| Items | Data | Items | Data |
| LPG Tanker Semi-trailer | Kerbweight | 16950 Kg | Tank | Design pressure | 2.16Mpa |
| Payload (Product weight) | 23000 Kg | Design temperature | 50℃ |
| Gross Vehicles Weight (GVW) | 39950 Kg | Filling medium | liquid ammonia |
| Capacity | 56.76 m3 | Tank material | 16MnR |
| Pressure of leak test | 1.77 Mpa | Corrosion allowance | 1.0mm |
| VehicleDimensions (L x W x H) | 12700x2500x3975 |
| Tank mass | 10720Kg |
| Hydraulic test pressure | 2.66 Mpa |
| Full load | Fifth wheel load | 15970KN | External Dimensions Diameter×Thickness×Length | DN2420x14x12398 |
| Rear axle load | 23980KN |
| Max. vehicle roll angle | ≥350 |
| Design the limited velocity | Straight road | 80 Km/h | Vessel's sort | The third kind |
| Turning | 20 Km/h | Service Years | Ten years |
| Urgent Discount Device | Type | QGY43-2.5 | SafetyValve | Type | A412F-2.5-16 |
| Nominal pressure | PN2.5Mpa | Model | Inner full lift |
| Nominal diameter | Gas phase | DN 25mm | Nominal pressure | PN2.5 MPa |
| Liquid phase | DN 50mm | Nominal diameter | DN80mm |
| Operation way | hydraulic | Opening pressure | 1.86~1.94 MPa |
| Closing time | ≤10 Sec | Closing pressure | 1.49~1.55MPa |
| Melting switch temperature | 70±5℃ | Complete opening pressure | <2.12 MPa |
| IndicatorGauge | Type | ZGM2.42/2.5 | Loading and unloading valve | Valve type | YKAG-3.3-6 /YKAG-3.3-7 |
| Model | Rotary type | Model | Quick tie-in |
| Nominal pressure | PN2.5Mpa | Nominal Diameter | Gas phase | DN25mm |
| Surveying range | 0~2400mm | Liquid phase | DN50mm |
| Precision | 2.5 Grade |
